HW8282

AC / DC 400W Dual Output
Super Fast Charger
(LiPo/Li-Ion/LiFe & NiCd/NiMH & Pb)

Specifications

Input Voltage: 11-15V DC or 110-120V/ 220-240V AC
Output Power: Total 400W for both AC & DC
                   (It is 200W per channel for both AC & DC)
Battery Type &
Cell (AC/DC)    : 2 x (1-6 cells Li-Po/Li-Ion/Li-Fe)
                       : 2 x (12V Pb)
                       : 2 x (1-16 cells Ni-MH/Cd)
Adjustable Charge current: 12Amp Maximum
Charging method:- Li-Po / Li-Ion / Li-Fe and Pb Battery
                          (Constant Current / Constant Voltage)
                        :- NiMH / NiCd Battery   (Constant
                           Current and with Delta Peak Cut-off)
Dimensions (LxWxH) 192 x 255 x 85mm

Features

-  Dual Output Charging
-  Adjustable charge current
-  Constant Current / Constant Voltage for charging
   Li-Po/ Li-Ion/ Li-Fe and Pb battery
-  Delta Peak cut off for charging NiMH / NiCd battery
-  LED to indicate the charging progress
-  Reverse polarity protection on output
-  4mm Banana Connection at the front
-  Spring clamp connection at the back
-  The three balancer adapter boards (PQ, JST/XH,
   TP/FP) and charge leads are included
Descriptions

- We are using the concept "Less is more" to
  develop this item, instead of having a lot of
  complicated functions (which makes the end user
  very confused) and unnecessary functions(which
  the end user will never use), we make our new
  item very easy for everyone to use.

- The end user doesn't need to be an expert to use
  the charger, they just need to connect the charger
  to the mains AC power socket, connect the
  battery to the charger, select thebattery type, the
  LED lights up to indicate that the charging is in
  progress, the LED glows green when the battery
  is fuly charged. Everything will be done
  automatically.

- The voltage & amperage will be shown on the
  screen

- This is a really great item for the people with low
  spending budget & the charger is very easy for
  both the beginner & serious Hobbyist to operate.

- The charger does have automatic current, once
  the charger & the battery are connected and the
  battery type is selected, everythng is automatic.
  The knob is just an extra option forthe end user
  to adjust the amp if they would like to.

- Just like the Ni-MH/CD chargers, everything is
  just very simple for the end users, the end
  users don't need to or don't want to know how
  the charger works inside or in the back-end, they
  jsut want to connect the charger and battery and
  charge the battery.

- Both output can be used simultaneously






HW1122-828


1-26V DC, 0-25Amp Variable
Dual Output Power Supply &
ALL-IN-ONE Super Fast Charger
(AC 650W MAX.)

Specifications
Input Voltage : 110-120V/ 220 - 240VAC  60/50Hz
Output voltage Power supply: 1 - 26V (Adjustable)
Output current Power supply: 0 - 25A (Adjustable)
Balancer socket:  2...6S LiPo/LiIo/LiFe
Charge facility : 2...6S LiPo/LiIo/LiFe
Charge facility : 2 / 4 / 6 / 8 / 10 / 12V Pb
Charge facility : 2-16 cells Ni-MH/Cd
Charge current: 0 - 25A
USB charging Port: 5V, 0-2A
Dimensions (LxWxH) 225 x 160 x 225mm

Power unit output:
-  Variable output voltage 1 - 26 V DC
-  Variable current limiting 0 - about 25 A
-  Dual Output plugs for multi-usage
-  2 rows, 16 characters, blue backlight, LCD
   screen allows you to read more clearly
-  Particularly well suited for supplying chargers
   and DC mini-drills
-  Suitable for fast charging of 2 -12 V lead-acid
   batteries using constant current / constant
   voltage charge method, and much more.

Charging output:
-  For quick charging of 2 - 6 cells Li-Po/Li-Ion/ LiFe,
   2-16 cells NiMh/NiCd batteries,
   2V/ 4V / 6V/ 8V / 10V / 12V Pb Batteries
   with a charging current of 0 - 25A.
-  Balancer current about 300mA.
-  Charge and balance the Battery pack automatically
   without selecting/ adjustable the Output Current
-  4mm Banana plug charging leads with different
   connectors (Deans, Traxxas, Tamiya, JR, TX),
   as well as the three balancer adapter boards
   (PQ, JST/XH, TP/FP) are all included

Descriptions

-  This item is like 2 devices (a1-26V/25A/650W
   Power Supply &a Super Fast Multi- Charger)
   combined in one device.People can use this new
   item as a Power Supply like those people who
   are already buying our Power Supplies, otherwise
   the user can also use this item as an Fast
   Charger for charging Lithium, NiCD/NiMh and
   Pb Batteries

-  One of the very good things about this item is
   that to buy a 1-26V/25A/650W Power Supply will
   already cost some money which means now they
   are only paying a little bit more to get an Fast
   Charger for charging Lithium/ NiCd/NiMh and
   Pb batteries.

-  We are using the concept “Less is More” to
   develop this item, instead of having a lot of
   complicated functions (which makes the user
   very confused) andunnecessary functions (which
   the user will never use), we make our new item
   very easy for everyone to use.

-  The charger part does have automatic current,
   once the charger & the battery are connected
   and the battery type is selected, everythng is
   automatic. The button is just an extra option for
   the end user to adjust the amp if they would
   like to.

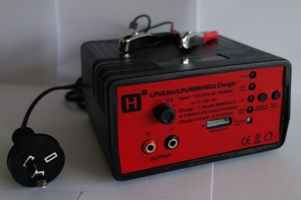

HW877-31

AC/DC Super Fast Charger
for LiPo/LiIon/LiFe & NiCd/NiMH

Specifications

Mains input: 110 - 240V AC 50/60Hz or 11-15V DC
Charge Rate: 0.5A / 1A / 2A / 3A / 4A
Battery Type & Cells (AC/DC) :
     -  2 - 4 Li-Po / Li-Ion / Li-Fe
     -  1 - 10 NiMH/NiCd
LED Indicator:  Red = Charging ;  Green = Full
Charging method:
     -  Li-Po / Li-Ion / Li-Fe Battery
        (Constant Current / Constant Voltage)
     -  NiMH / NiCd Battery
        (Constant Current and with Delta Peak Cut-off)
Dimensions approx. 149 x 137 x 78 mm

Description

-  Adjustable charge rate
-  Delta Peak cut off for charging
   NiMH / NiCd battery
-  LED to indicate the charging progress
-  Reverse polarity protection on output
-  4mm Banana Connection at the front
-  Spring clamp connection at the back
-  Futaba TX, Deans, RX, Traxxas, JR/Spektrum
   TX and Tamiya charge leads are included
-  The three balancer adapter boards
   (PQ, JST/XH, TP/FP) are included






HW1122

1-26V, 25Amp, Dual Output Power
Supply & ALL-IN-ONE Super Fast
Charger (AC 650W MAX.)

Specifications

Input: 220 - 240VAC
Output voltage Power supply: 11 - 26V
Balancer socket:  2...6S LiPo/LiIo/LiFe
Max. balancing current: 300mA
Continuous output current: 15A
All-up weight, approx. 1620g
Charge facility: 2...6S LiPo/LiIo/LiFe
Charge current: 0 - 15A
Dimensions (LxWxH) 192 x 255 x 85mm

Power unit output:

-  Variable output voltage 11 - 26 V DC
-  Variable current limiting 0 - about 15 A
-  Display with blue backlighting to display
   voltage and current
-  Particularly well suited for supplying chargers
   and DC mini-drills
-  Suitable for fast charging of 12 V lead-acid
   batteries using constant current/constant voltage
   charge method, and much more.
-  (Please consult the operating instructions!)

Charging output:

-  For quick charging of 2 - 6 cells Li-Po/Li-Io
   and LiFe batteries with a charging current of
   0 - 15A.
-  Balancer current about 300mA.
-  Switchable power unit output or charging output.
-  Simultaneous operation not possible.
-  The three balancer adapter boards
   (PQ, JST/XH, TP/FP) are included

Descriptions

-  This new item is like 2 devices (a 12-26V/15A/
   390W Power Supply & an AC 450W MAX
   Li-Po/Li-Fe/Li-ion Fast Charger) combined in
   one device. People can use this new item as a
   Power Supply like those people who arealready
   buying our Power Supplies, otherwise, the user
   can also use this new item as an AC 450W
   MAX Li-Po/Li-Fe/Li-Ion Fast Charger

-  One of the very good things about this new
   item is that to buy a 12-26V/15A/390W Power
   Supply will already cost some money which
   means nowthey are only paying a little bit
   more to get an AC 450W MAX
   Li-Po/Li-Fe/Li-ion Fast Charger!

-  We are using the concept “Less is More” to
   develop this new item, instead of having a lot
   of complicated functions (which makes the
   user very confused) andunnecessary functions
   (which the user will never use), we make our
   new item very easy for everyone to use.



HW828 - DUAL

Dual Outputs Battery Charger

Specification

Input Voltage: 110 - 240V AC  50/60Hz
Transmitter output: 7-8 NiMH (8.4 -9.6V)
                               approx. 120 mA
Tamiya output: 4 - 7 NiMH (4.8 ... 8.4 V)
                        approx. 900 mAh with charge cut-off
Dimensions approx. 78 x 50 x 28 mm
Weight : approx. 110g
Description

- Tamiya Output:
       Delta Peak (900mA)
       Tamiya Socket
       Ni-Cd/Ni-MH – 4~7 Cells
- TX Output
       Fixed Constant Current (120mA)
       Detachable Plug for both
       Futaba and JR/Spektrum
       Ni-Cd/Ni-MH – 7~8 Cells
- Can charge two battery packs simultaneously
- Comprehensively protect against overload and
  short circuit
- 2 separate LED indicator for each output to
   indicate the charging progress
- AUTO detect battery packs's cell quantities and
  apply thecharging current accordingly
- This charger has DUAL outputs
  (one for Tamiya and one for TX)
- A conversion lead from Tamiya to RX or
  BEC is also included






HW828-12V

12V 1Amp Sealed Lead-Acid Pb Charger

Specifications

Input voltage: 110 - 240V AC 50/60 Hz
SLA Charger: 12V
Charge Rate: 1A




Features

- LED Indicator: Red = Charging
- LED Indicator: Green = Charged






HW888

2V / 6V / 12V Sealed Lead-Acid Pb Charger

Specifications

Input voltage: 110 - 240V AC
Output: 2V/6V/12V
Output current: 0.2 - 1A

Features

-  For 2V/6V/12V lead-acid
   batteries of 2…20Ah capacity
-  Compact battery charger with
   lightweight switch-mode PSU
   for fast charging 2V, 6V and
   12V drive batteries as well as
   pit-box and starter batteries
-  Automatic voltage detection
   and charge current setting,
   range 0.2 to 1A
-  LED Indicator: Red = Charging,
                        Green= Charged
